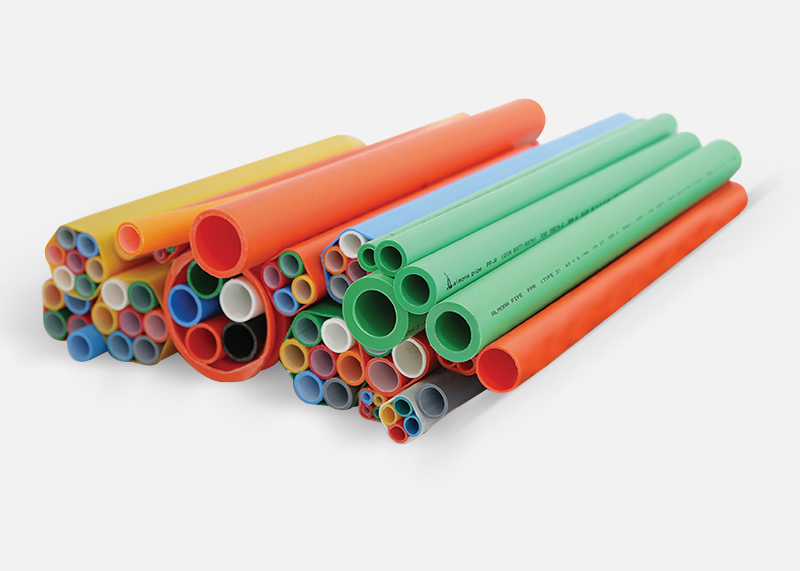

PLB Duct Pipe

PLB Duct Pipe

Specification

PLB HDPE DUCT consists of 2 concentric layers, the outer & inner layer being co extrucded with HDPE for permanent lubricant to reduce the internal coefficient of fraction (ICF).



Materials : HDPE granules to be used for the outer & inner layer of PLB HDPE DUCT shall equivalent standard meeting the requirements when tested as per IS:4984
Product Range : Available in Size 32mm, 40mm, 50mm, 63mm Outer diameter.
Length : Available in Standard length 50,100,200,500, 1000 & 2000 meter coils Depending on the pipes dimensions, Or Large diameter in fixed length of 6 Meter as per customer requirements.
Colour : Grey, Marron, Yellow, Orange, Blue, Black, Red, Pink, Green, Purple.
  • Applications
  • Features
  • Dimensions
  • Telecommunication, Computer Network, Automatic-Signaling, Railway Information Network, Highways, Cable Service Providers, Board Bankd network, Electric Cable Installation etc.
  • Outstanding resistance to conventional chemical & environments.
  • Flexible & highly durable.
  • Long length up to 1000mt. (depending upon the size)
  • Excellent flow characteristics.
  • Earthquake resistance.
  • Reduction of stress on cable during installation.
  • Installation of longer length made feasible.
  • Negotiations of cable movement through bends and deflections are easier.
  • Reduction of number of joints and minimizes number of splices.
  • Faster and easy installation of cable with lesser workers.
  • Reduction of overall cost of installation, maintenance and future upgrades.
  • Retains its properties throughout its life.
  • Existing cables can be deploy after de-blowing from the duct.
  • This does not have toxic and derma tic hazards and is safe handling.
Sr No. Duct Size Outer Dia Overlity (Max) Wall Thickness Standard Length
1 32 / 26 32 ± 0.3 1.3 3.0 ± 0.2 500 / 1000 mtrs.
2 40 / 33 40 ± 0.4 1.4 3.5 ± 0.2 500 / 1000 mtrs.
3 50 / 42 50 ± 0.5 1.4 4.0 ± 0.3 500 / 1000 mtrs.
4 63 / 50 63 ± 0.6 1.5 6.5 ± 0.4 6 / 12 / 50 / 100 / 500 mtrs.
5 110 / 80 110 ± 1.0 2.2 15.0 ± 6.0 6 / 12 / 50 / 100 mtrs.
