MDPE Pipe
PRODUCT CATEGORY
Quick Inquiry
Specification

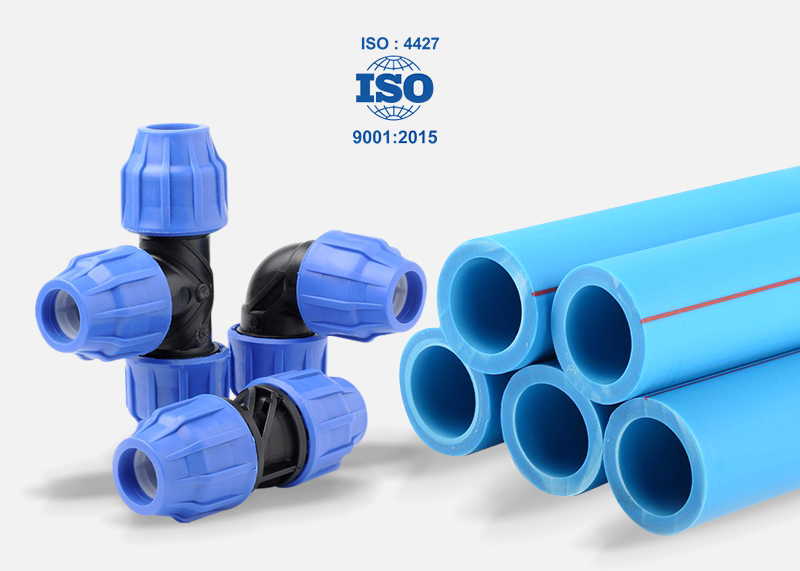

Dripmaster Piping System Medium Density Polyethylene pipe (MDPE) is light weight, flexible and durable piping system which is manufactured within the world class Quality Management Systems as per ISO 9001-2008.
Product Range
16 mm to 160 mm
- Benefits
- MDPE PE80 Dimension Chart
- MDPE PE100 Dimension Chart
- Light weight, Flexible and durable.
- Crack resistant.
- Robust construction with high impact strength.
- Suitable for cold and waste water distribution system.
- Low friction losses due to excellent smooth internal surface.
- Resistant to chemical reaction, bacterial growth, corrosion, rusting etc.
| SIZE / OD | OD | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN08 | |||||||
| Wall Thick | Wall Thick | Wall Thick | Wall Thick | Wall Thick | Wall Thick | |||||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 16 + 0.3 | 16.0 | 16.3 | 3.00 | 3.40 | 2.30 | 2.70 | 2 | 2.3 | _ | _ | _ | _ | _ | _ |
| 20 + 0.3 | 20.0 | 20.3 | 3.40 | 3.90 | 3.00 | 3.40 | 2.3 | 2.7 | 2 | 2.3 | _ | _ | _ | _ |
| 25 + 0.3 | 25.0 | 25.3 | 4.20 | 4.80 | 3.50 | 4.00 | 3 | 3.4 | 2.3 | 2.7 | 2.0 | 2.3 | _ | _ |
| 32 + 0.3 | 32.0 | 32.3 | 5.40 | 6.10 | 4.40 | 5.00 | 3.6 | 4.1 | 3.0 | 3.4 | 2.4 | 2.8 | 2.0 | 2.3 |
| 40 + 0.4 | 40.0 | 40.4 | 6.70 | 7.50 | 5.5 | 6.20 | 4.5 | 5.1 | 3.7 | 4.2 | 3.0 | 3.5 | 2.4 | 2.8 |
| 50 + 0.4 | 50.0 | 50.4 | 8.30 | 9.30 | 6.9 | 7.7 | 5.6 | 6.3 | 4.6 | 5.2 | 3.7 | 4.2 | 3.0 | 3.4 |
| 63 + 0.4 | 63.0 | 63.4 | 10.5 | 11.7 | 8.6 | 9.6 | 7.1 | 8.0 | 5.8 | 6.5 | 4.7 | 5.3 | 3.8 | 4.3 |
| 75 + 0.5 | 75.0 | 75.5 | 12.5 | 13.9 | 10.3 | 11.5 | 8.4 | 9.4 | 6.8 | 7.6 | 5.6 | 6.3 | 4.5 | 5.1 |
| 90 + 0.6 | 90.0 | 90.6 | 15.0 | 16.7 | 12.3 | 13.7 | 10.1 | 11.3 | 8.2 | 9.2 | 6.7 | 7.5 | 5.4 | 6.1 |
| 110 + 0.7 | 110.0 | 110.7 | 18.3 | 20.3 | 15.1 | 16.8 | 12.3 | 13.7 | 10.0 | 11.1 | 8.1 | 9.1 | 6.6 | 7.4 |
| 125 + 0.8 | 125.0 | 125.8 | 20.8 | 23.0 | 17.1 | 19.0 | 14.0 | 15.6 | 11.4 | 12.7 | 9.2 | 10.3 | 7.4 | 8.3 |
| 140 + 0.9 | 140.0 | 140.9 | 23.3 | 25.8 | 19.2 | 21.3 | 15.7 | 17.4 | 12.7 | 14.1 | 10.3 | 11.5 | 8.3 | 9.3 |
| 160 + 1.0 | 160.0 | 161.0 | 26.6 | 29.4 | 21.9 | 24.2 | 17.9 | 19.8 | 14.6 | 16.2 | 11.8 | 13.1 | 9.5 | 10.6 |
| 180 + 1.1 | 180.0 | 181.1 | 29.9 | 33.0 | 24.6 | 27.2 | 20.1 | 22.3 | 16.4 | 18.2 | 13.3 | 14.8 | 10.7 | 11.9 |
| 200 + 1.2 | 200.0 | 201.2 | 33.2 | 36.7 | 27.4 | 30.3 | 22.4 | 24.8 | 18.2 | 20.2 | 14.7 | 16.3 | 11.9 | 13.2 |
| 225 + 1.4 | 225.0 | 226.4 | 37.4 | 41.3 | 30.8 | 34.0 | 25.2 | 27.9 | 20.5 | 22.7 | 16.6 | 18.4 | 13.4 | 14.9 |
| 250 + 1.5 | 250.0 | 251.5 | 41.5 | 45.8 | 34.2 | 37.8 | 27.9 | 30.8 | 22.7 | 25.1 | 18.4 | 20.4 | 14.8 | 16.4 |
| 280 + 1.7 | 280.0 | 281.7 | 46.5 | 51.3 | 38.3 | 42.3 | 31.3 | 34.6 | 25.4 | 28.1 | 20.6 | 22.8 | 16.6 | 18.1 |
| 315 + 1.9 | 315.0 | 316.9 | 52.3 | 57.7 | 43.1 | 47.6 | 35.2 | 38.9 | 28.6 | 31.6 | 23.2 | 25.7 | 18.7 | 20.7 |
| 355 + 2.2 | 355.0 | 357.2 | 59.0 | 65.0 | 48.5 | 53.5 | 39.7 | 43.8 | 32.2 | 35.6 | 26.1 | 28.9 | 21.1 | 23.4 |
| 400 + 2.4 | 400.0 | 402.4 | 0.0 | 0.0 | 54.7 | 60.3 | 44.7 | 49.3 | 36.3 | 40.1 | 29.4 | 32.5 | 23.7 | 26.2 |
| SIZE / OD | OD | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | ||||||
| Wall Thick | Wall Thick | Wall Thick | Wall Thick | Wall Thick | ||||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 16 + 0.3 | 16.0 | 16.3 | 2.30 | 2.70 | 2.00 | 2.30 | _ | _ | _ | _ | _ | _ |
| 20 + 0.3 | 20.0 | 20.3 | 3.00 | 3.40 | 2.30 | 2.70 | 2 | 2.3 | _ | _ | _ | _ |
| 25 + 0.3 | 25.0 | 25.3 | 3.50 | 4.00 | 3.00 | 3.40 | 2.3 | 2.7 | 2.0 | 2.3 | _ | _ |
| 32 + 0.3 | 32.0 | 32.3 | 4.40 | 5.00 | 3.60 | 4.10 | 3.0 | 3.4 | 2.4 | 2.8 | 2.0 | 2.3 |
| 40 + 0.4 | 40.0 | 40.4 | 5.50 | 6.20 | 4.5 | 5.10 | 3.7 | 4.2 | 3.0 | 3.5 | 2.4 | 2.8 |
| 50 + 0.4 | 50.0 | 50.4 | 6.90 | 7.70 | 5.6 | 6.3 | 4.6 | 5.2 | 3.7 | 4.2 | 3.0 | 3.4 |
| 63 + 0.4 | 63.0 | 63.4 | 8.6 | 9.6 | 7.1 | 8.0 | 5.8 | 6.5 | 4.7 | 5.3 | 3.8 | 4.3 |
| 75 + 0.5 | 75.0 | 75.5 | 10.3 | 11.5 | 8.4 | 9.4 | 6.8 | 7.6 | 5.6 | 6.3 | 4.5 | 5.1 |
| 90 + 0.6 | 90.0 | 90.6 | 12.3 | 13.7 | 10.1 | 11.3 | 8.2 | 9.2 | 6.7 | 7.5 | 5.4 | 6.1 |
| 110 + 0.7 | 110.0 | 110.7 | 15.1 | 16.8 | 12.3 | 13.7 | 10.0 | 11.1 | 8.1 | 9.1 | 6.6 | 7.4 |
| 125 + 0.8 | 125.0 | 125.8 | 17.1 | 19.0 | 14.0 | 15.6 | 11.4 | 12.7 | 9.2 | 10.3 | 7.4 | 8.3 |
| 140 + 0.9 | 140.0 | 140.9 | 19.2 | 21.3 | 15.7 | 17.4 | 12.7 | 14.1 | 10.3 | 11.5 | 8.3 | 9.3 |
| 160 + 1.0 | 160.0 | 161.0 | 21.9 | 24.2 | 17.9 | 19.8 | 14.6 | 16.2 | 11.8 | 13.1 | 9.5 | 10.6 |
| 180 + 1.1 | 180.0 | 181.1 | 24.6 | 27.2 | 20.1 | 22.3 | 16.4 | 18.2 | 13.3 | 14.8 | 10.7 | 11.9 |
| 200 + 1.2 | 200.0 | 201.2 | 27.4 | 30.3 | 22.4 | 24.8 | 18.2 | 20.2 | 14.7 | 16.3 | 11.9 | 13.2 |
| 225 + 1.4 | 225.0 | 226.4 | 30.8 | 34.0 | 25.2 | 27.9 | 20.5 | 22.7 | 16.6 | 18.4 | 13.4 | 14.9 |
| 250 + 1.5 | 250.0 | 251.5 | 34.2 | 37.8 | 27.9 | 30.8 | 22.7 | 25.1 | 18.4 | 20.4 | 14.8 | 16.4 |
| 280 + 1.7 | 280.0 | 281.7 | 38.3 | 42.3 | 31.3 | 34.6 | 25.4 | 28.1 | 20.6 | 22.8 | 16.6 | 18.1 |
| 315 + 1.9 | 315.0 | 316.9 | 43.1 | 47.6 | 35.2 | 38.9 | 28.6 | 31.6 | 23.2 | 25.7 | 18.7 | 20.7 |
| 355 + 2.2 | 355.0 | 357.2 | 48.5 | 53.5 | 39.7 | 43.8 | 32.2 | 35.6 | 26.1 | 28.9 | 21.1 | 23.4 |
| 400 + 2.4 | 400.0 | 402.4 | 54.7 | 60.3 | 44.7 | 49.3 | 36.3 | 40.1 | 29.4 | 32.5 | 23.7 | 26.2 |
