HDPE Pipe

HDPE Pipe

Specification

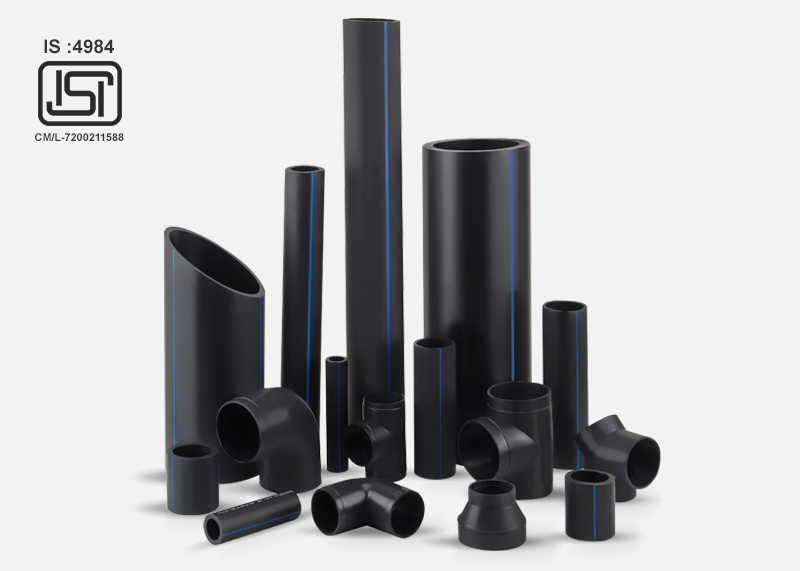

Dripmaster Piping System HDPE pipes and fittings are manufactured at state-of-the-art manufacturing plant. HDPE material is best suited against GI/DI as it is inert to most of the chemicals. Latest generation PE pipe grade raw material is used to provide ultimate strength to the product.

Pipes are produced out of extrusion process while fittings are fabricated from pipes under international under ISO 9001:2015 Quality Management System. Pipe’s semi-flexible property makes it convenient for handling and installation.

Composition: Made from special pipe grade High Density Poly Ethylene – chemically inert material that gives high impact as well as tensile strength. Manufactured at international standard production and testing facility.

Also Available
  • Pipes as per ISO 4437, ASTM D 3350, ISO DP 4427 etc.
  • Services for pipes butt welding – on Site installation.
  • Sewage and Solid Waste Management Pipes with ISI (IS 14333) mark.
Available Sizes
  • 16 mm to 160 mm
  • Key Features
  • Applications
  • Technical Parameters
  • Lightweight
  • Flexible – pipes up to 140 mm diameter available in coil form
  • Excellent resistance to stress cracking and long term stress crack propagation
  • Can be safely used down to -40°C
  • Chemically resistant to most corrosive chemicals, acids and alkalies
  • Abrasion resistant
  • All types of fabricate fittings for butt welding available
  • Agriculture (column pipes for submersible pumps, suction and delivery of water, sprinkler systems, drip/lift irrigation etc.)
  • Potable water supply.
  • Conveying corrosive effluents of chemical and other process industries like petrochemicals, paper, dye stuff, rayon and fertilizers.
  • Sewage and solid waste management pipe lines (IS 14333).
  • Underground pipe lines.
  • Cable duct lines.
  • Radioactive Waste.
  • Onshore and off shore pipe lines for dredging.
  • DM/RODM plants.
  • Air conditioning and ducting.
  • Supply of compressed air.
  • Chilled water circulation.

Grade: (PE 63)

Size Pn 2 Pn 2.5 Pn 3.2 Pn 4 Pn 5 Pn 6 Pn 8
SDR 41 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11
DN Min Max Min Max Min Max Min Max Min Max Min Max Min Max
16MM
20MM                         1.90 2.20
25MM                     1.90 2.20 2.30 2.60
32MM                 1.90 2.20 2.40 2.70 2.90 3.30
40MM             1.90 2.20 2.40 2.70 3.00 3.40 3.70 4.20
50MM         2.00 2.30 2.40 2.70 3.00 3.40 3.70 4.20 4.60 5.20
63MM         2.50 2.90 3.00 3.40 3.70 4.20 4.70 5.30 5.80 6.50
75MM 1.90 2.20 2.30 2.60 2.90 3.30 3.60 4.10 4.50 5.10 5.60 6.30 6.90 7.70
90MM 2.20 2.50 2.80 3.20 3.50 4.00 4.30 4.80 5.30 5.90 6.70 7.50 8.20 9.10
110MM 2.70 3.10 3.40 3.80 4.30 4.80 5.90 6.60 6.50 7.30 8.10 9.00 10.00 11.10

Grade: (PE 80)

Size Pn 2.5 Pn 3.2 Pn 4 Pn 5 Pn 6 Pn 8 Pn 10 Pn 12.5 Pn 16 Pn 20
SDR 41 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4 SDR 6
DN Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
16MM                             1.80 2.10 2.20 2.50 2.70 3.10
20MM                         1.90 2.20 2.30 2.60 2.70 3.10 3.40 3.80
25MM                     1.90 2.20 2.30 2.60 2.80 3.20 3.40 3.80 4.20 4.70
32MM                 1.90 2.20 2.40 2.70 2.90 3.30 3.60 4.10 4.40 4.90 5.40 6.00
40MM             1.90 2.20 2.40 2.70 3.00 3.40 3.70 4.20 4.50 5.10 5.40 6.00 6.70 7.50
50MM         2.00 2.30 2.40 2.70 3.00 3.40 3.70 4.20 4.60 5.20 5.60 6.30 6.80 7.60 8.40 9.30
63MM         2.50 2.90 3.00 3.40 3.70 4.20 4.70 5.30 5.80 6.50 7.00 7.80 8.60 9.60 10.50 11.70
75MM 1.90 2.20 2.30 2.60 2.90 3.30 3.60 4.10 4.50 5.10 5.60 6.30 6.90 7.70 8.40 9.30 10.20 11.30 12.50 13.90
90MM 2.20 2.50 2.80 3.20 3.50 4.00 4.30 4.80 5.30 5.90 6.70 7.50 8.20 9.10 10.00 11.10 12.20 13.50 15.00 16.60
110MM 2.70 3.10 3.40 3.80 4.30 4.80 5.90 6.60 6.50 7.30 8.10 9.00 10.00 11.10 12.30 13.60 14.90 16.50 18.40 20.30

Grade: (PE 100)

Size Pn 3 Pn 4 Pn 5 Pn 6 Pn 8 Pn 10 Pn 12.5 Pn 16 Pn 20
SDR 41 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
DN Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
16MM                             1.80 2.10 2.20 2.50
20MM                         1.90 2.20 2.30 2.60 2.70 3.10
25MM                     1.90 2.20 2.30 2.60 2.80 3.20 3.40 3.80
32MM                 1.90 2.20 2.40 2.70 2.90 3.30 3.60 4.10 4.40 4.90
40MM             1.90 2.20 2.40 2.70 3.00 3.40 3.70 4.20 4.50 5.10 5.40 6.00
50MM         2.00 2.30 2.40 2.70 3.00 3.40 3.70 4.20 4.60 5.20 5.60 6.30 6.80 7.60
63MM         2.50 2.90 3.00 3.40 3.70 4.20 4.70 5.30 5.80 6.50 7.00 7.80 8.60 9.60
75MM 1.90 2.20 2.30 2.60 2.90 3.30 3.60 4.10 4.50 5.10 5.60 6.30 6.90 7.70 8.40 9.30 10.20 11.30
90MM 2.20 2.50 2.80 3.20 3.50 4.00 4.30 4.80 5.30 5.90 6.70 7.50 8.20 9.10 10.00 11.10 12.20 13.50
110MM 2.70 3.10 3.40 3.80 4.30 4.80 5.90 6.60 6.50 7.30 8.10 9.00 10.00 11.10 12.30 13.60 14.90 16.50

Recommendation of HDPE Pipes Depth in Borewell

Depth in Borewell in mtrs Pressure class Sizes range of pipes Grades of Materiais
Up to 40 Mtrs 2.0,2.5,3.0,3.2 kg/cm2 Dia. 20mm to 50mm PE 63
Up to 55 Mtrs 4.0 kg/cm2 Dia. 20mm to 50mm PE 63
Up to 90 Mtrs 6.0 kg/cm2 Dia. 63mm to 90mm PE 80
Up to 150 Mtrs 10.0 kg/cm2 Dia. 110mm to 315mm PE 80
Up to 180 Mtrs 12.5 kg/cm2 Dia. 110mm to 315mm PE 100
